Servo insert couplings
KBE1
- Torque range: 0,5 - 525Nm
- Servo Insert Coupling with Set Screw
KBE1
KBE2
- Torque range: 1,2 - 525Nm
- Servo Insert Coupling with Collet Clamp
KBE2
KBE2C ~ NEW!
- Torque range: 17 - 325Nm
- Servo Insert Coupling with Collet Clamps
- Compact version
KBE2C
KBE2H ~ NEW!
- Servo Insert Coupling with split hubs
- For radial assembly
KBE2H
KBE2D
- Servo Insert Coupling with Collet Clamps
- Double cardanic version
- Torque range: 1,2 - 325Nm
KBE2D

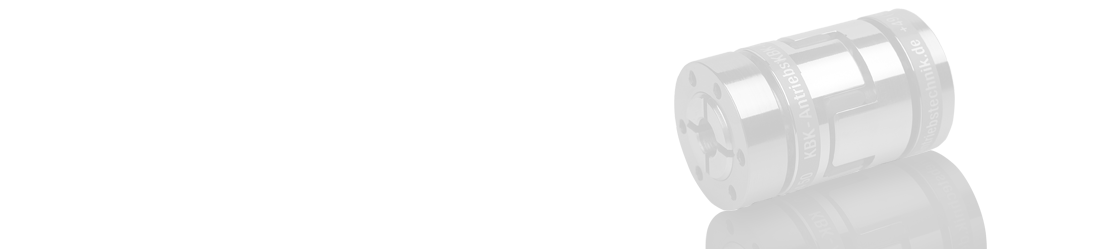

KBE3
- Torque range: 12,5 - 525Nm
- Servo Insert Coupling with Outer Conical Hub
KBE3
KBE3C ~ NEW!
- Torque range: 12,5 - 525Nm
- Servo Insert Coupling with Outer Conical Hubs
- Compact version
KBE3C
KBE4 ~ NEW!
- Torque range: 12.5 - 325Nm
- Servo Insert Coupling with expanding hub
- For hollow shaft connections
KBE4
Spider elements for our servo - insert couplings
- For each size the specifications like torque transmission, stiffness, misalignment compensations or dampening characteristics of the couplings can be modified by the servo insert / spider element.
- You can find an overview of the available spiders in the technical sheet.
Spider Elements
