KB1

• Backlash-free miniature metal bellows couplings with radial setscrews
• For shaft diameters from 1 - 24mm
• Torque range: 0.05 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Cost effective design

KB1P

• Backlash-free miniature metal bellows couplings with radial setscrews
• For shaft diameters from 3 - 25mm
• Torque range: 0.5 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Axial pluggable

KB2

• Backlash-free miniature metal bellows couplings with clamping hubs
• For shaft diameters from 1 - 25mm
• Torque range: 0.1 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly

KB2P

• Backlash-free miniature metal bellows couplings with clamping hubs
• For shaft diameters from 3 - 25mm
• Torque range: 0.5 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly
• Axial pluggable

KB2H

• Backlash-free metal bellows couplings with split hubs
• For shaft diameters 3 - 22mm
• Torque range 0.5 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• For radial assembly

KB2VA

• Backlash-free metal bellows couplings in full stainless steel
• For shaft diameters 1 - 25mm
• Torque range 0.1 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Available as welded construction for high temperatures or vacuum applications

KB3

• Backlash-free miniature metal bellows couplings with expanding hub
• For shaft diameters from 3 - 25mm
• Torque range: 0.5 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for connecting hollow shafts

KB3P

• Backlash-free miniature metal bellows couplings with expanding hub
• For shaft diameters from 3 - 25mm
• Torque range: 0.5 - 10Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for connecting hollow shafts
• Axial pluggable

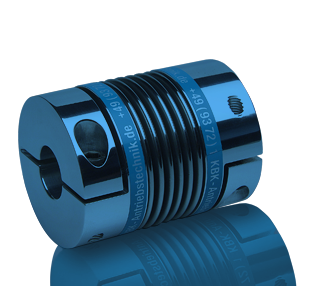

KB4

• Backlash-free metal bellows couplings with clamping hubs
• For shaft diameters from 10 - 80mm
• Torque range: 18 - 1400Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly

KB4P ~ new!

• Axial pluggable backlash-free metal bellows couplings with clamping hubs
• For shaft diameters from 10 - 70mm
• Torque range: 18 - 500Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for fast assembly / disassembly
• Hi tensile aliminium hubs ensure durability and low weight / inertia

KB4H

• Backlash-free metal bellows couplings with split hubs
• For shaft diameters 10 - 65mm
• Ttorque range 18 - 500Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• For radial assembly

KB4AL

• Backlash-free metal bellows couplings with clamping hubs
• KB4AL series with aluminium hubs, sizes 80 - 500
• For shaft diameters from 10 - 80mm
• Torque range: 18 - 1400Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly

KB4C

• Compact version of backlash-free metal bellows couplings with clamping hubs
• For shaft diameters from 10 - 70mm
• Torque range: 18 - 500Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly

KB4HC ~ new!

• Compact version of backlash-free metal bellows couplings with split hubs
• For shaft diameters from 10 - 70mm
• Torque range: 18 - 500Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for easy assembly / disassembly

KB4F ~ new!

• Backlash-free metal bellows couplings with clamp hub and flange interface
• For shaft diameters from 10 - 80mm
• Torque range: 18 - 1400Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for standardized flanges according to DIN-EN-ISO9401-1

KB4VA

• Backlash-free metal bellows couplings in full stainless steel
• For shaft diameters from 10 - 70mm
• Torque range: 18 - 500Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Available as welded construction for high temperatures or vacuum applications

KB5

• Backlash-free metal bellows couplings with inner conical hubs
• For shaft diameters from 10 - 90mm
• Torque range: 18 - 5000Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Compact design with high clamping forces

KB6

• Backlash-free metal bellows couplings with outer conical hubs
• For shaft diameters from 1 - 25mm
• Torque range: 18 - 5000Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Self - centering design with high clamping forces

KB7

• Backlash-free metal bellows couplings with flange hubs
• Torque range: 18 - 5000Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Flange hubs with a metric bolt circle. Can be designed in customized solutions

KB8

• Backlash-free metal bellows couplings with expanding hub
• For shaft diameters from 10 - 65mm
• Torque range: 18 - 300Nm
• High torsional stiffness, good compensation of shaft misalignment, low restoring forces
• Designed for connecting hollow shafts
